Výkon zdroje (ve W):850

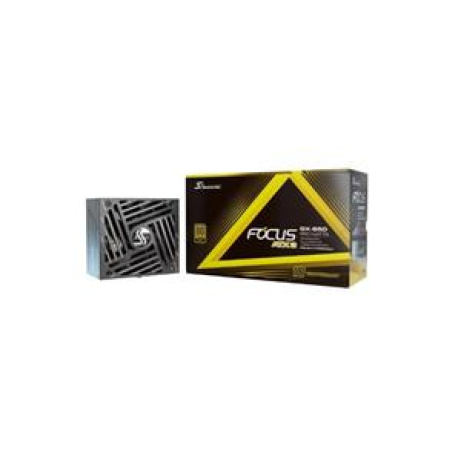

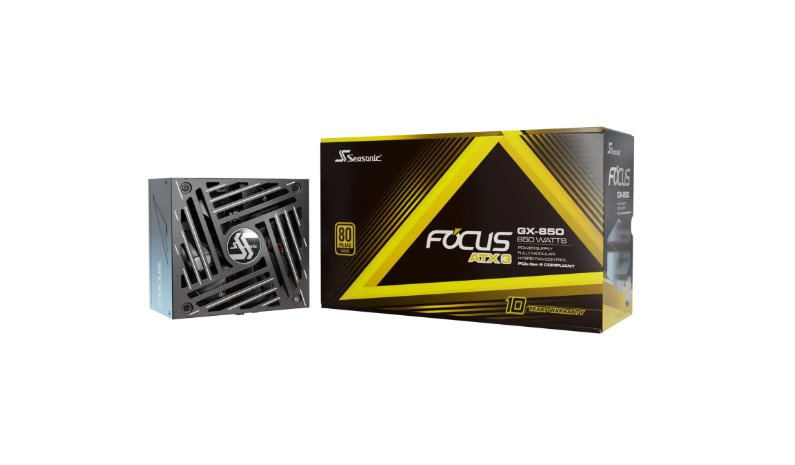

FOCUS GX ATX 3
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series has been upgraded to comply with the ATX 3.1 and PCIe 5.1 standards. It offers a complete range of power supplies from 750W to 1000W, all within a compact 140mm depth. Each unit features a 135mm fan, a 12V-2×6 cable, and our new OptiSink technology. These units are designed to be perfect allies in powering the latest high-power graphics cards and processors available on the market.

Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level Gold
Cybenetics Noise Level Standard++
Form Factor ATX/EPS
Fan Information Fan Size 135 mm
Fan Control Digital Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Fully Modular
Cable type Individual Black Cables with Braided Pattern
Electrical Features Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OCP, OPP, OTP, OVP, SCP, UVP
Safety and Environmental Safety and EMC CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC
Environmental Compliance Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Warranty 10 Years
Power Output
AC Input 100 V - 240 V
11 - 5.5 A
50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 70 A 0.3 A 3 A
100 W 840 W 3.6 W 15 W
Total continuous power 850 W
