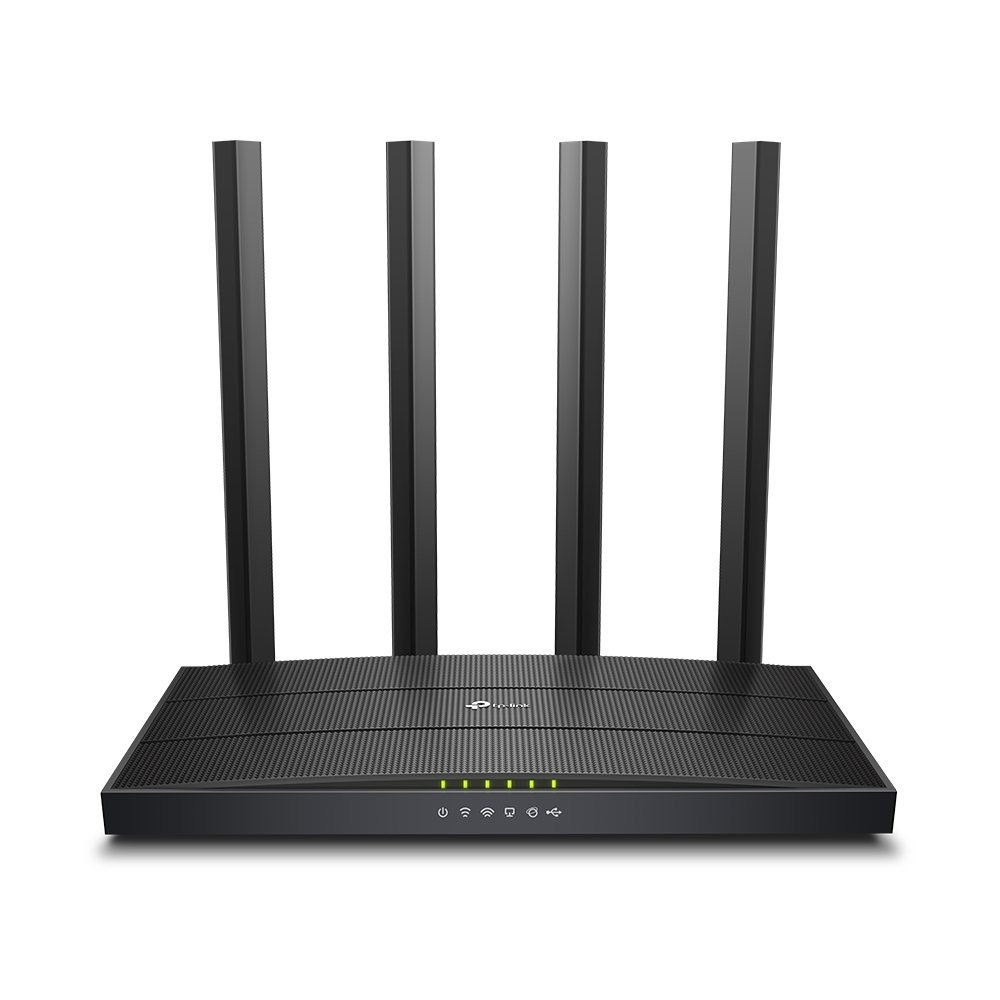

Archer C6U
AC1200 Bezdrátový gigabitový router

802.11ac Wi-Fi standard
Pracuje na dvou pásmech 2,4 GHz 300 Mb/s a 5 GHz 867 Mb/s s celkovou bezdrátovou rychlostí 1200 Mb/s
4 externí antény a jedna interní anténa poskytují stabilní bezdrátová připojení a optimální pokrytí signálem
Snadná správa sítě na dosah ruky s aplikací TP-Link Tether
MU-MIMO dosahuje dvojnásobnou efektivitu komunikace s až 2 zařízeními současně
Beamforming technologie poskytuje širší bezdrátové pokrytí
Podporuje režim přístupového bodu k vytvoření nového přístupového bodu Wi-Fi

WIRELESS

Standards
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)

WiFi Range
3 Bedroom Houses

4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

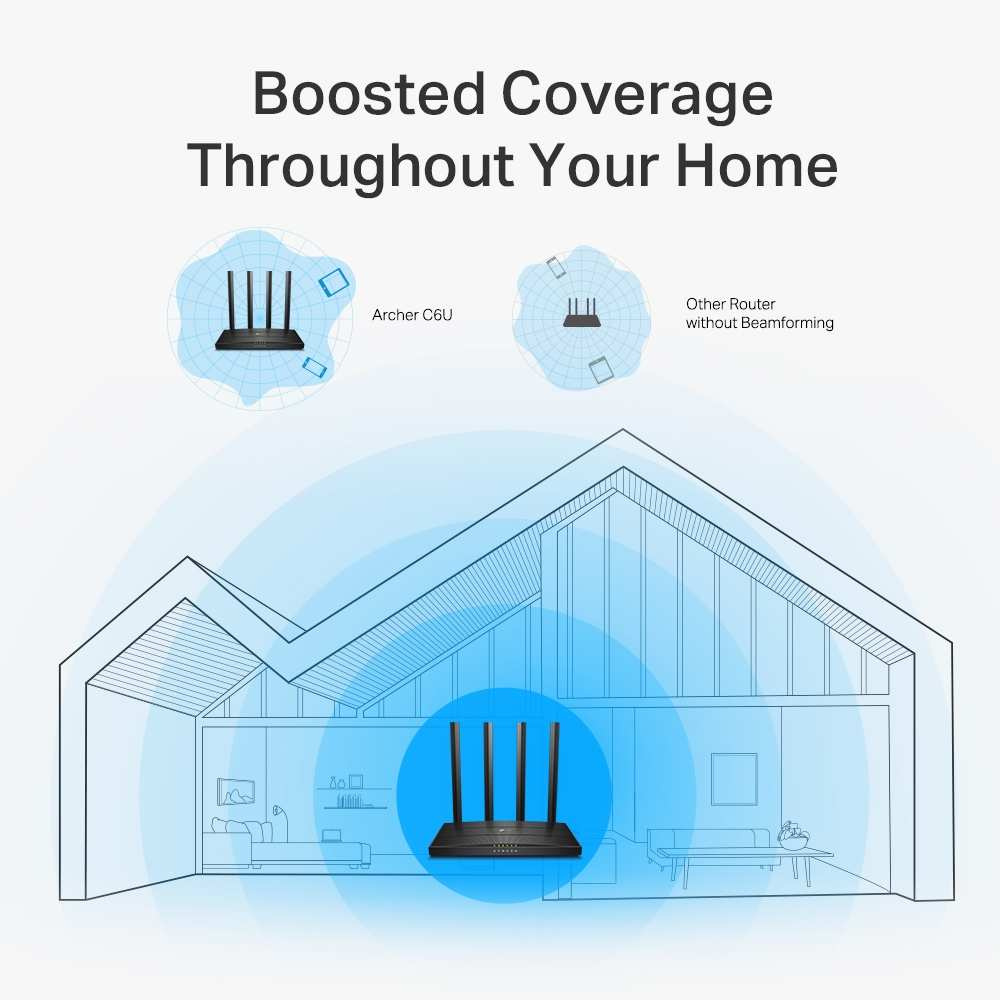

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity
Medium

Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

Working Modes
Router Mode
Access Point Mode

HARDWARE
Processor
Dual-Core CPU

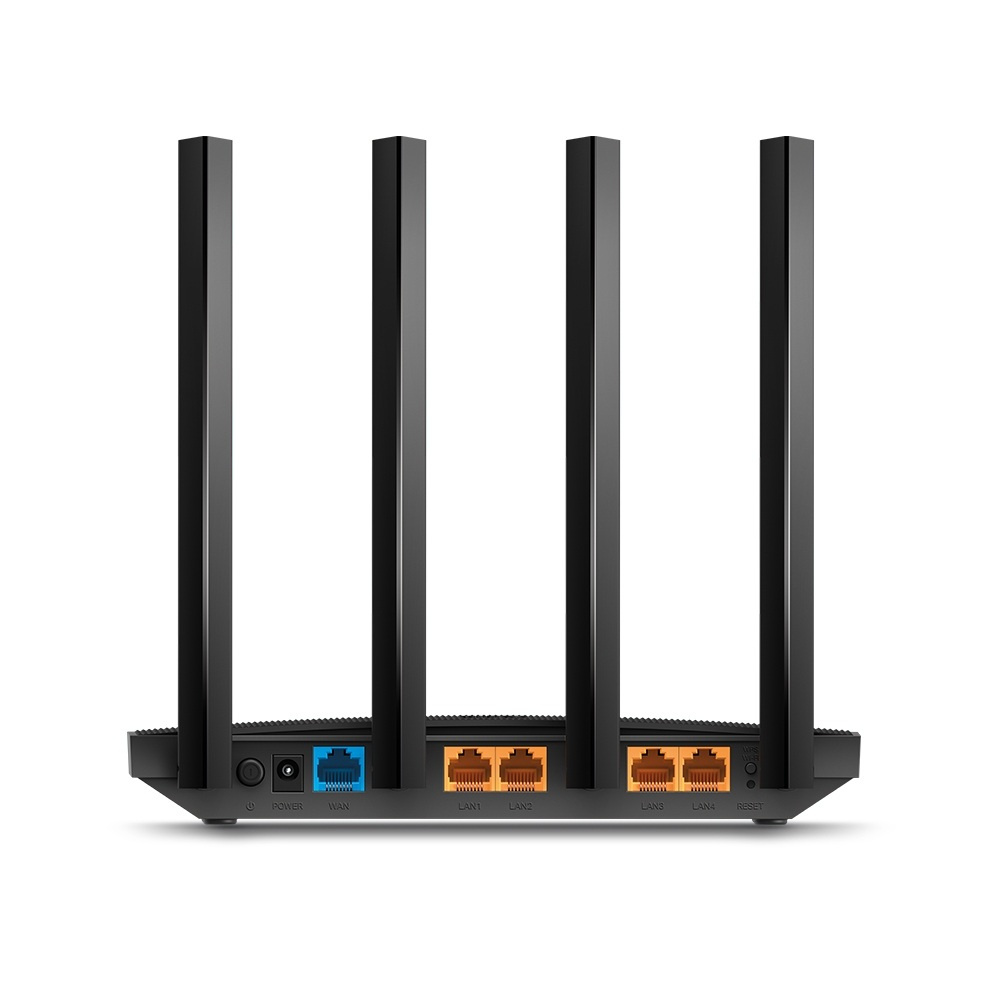

Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports

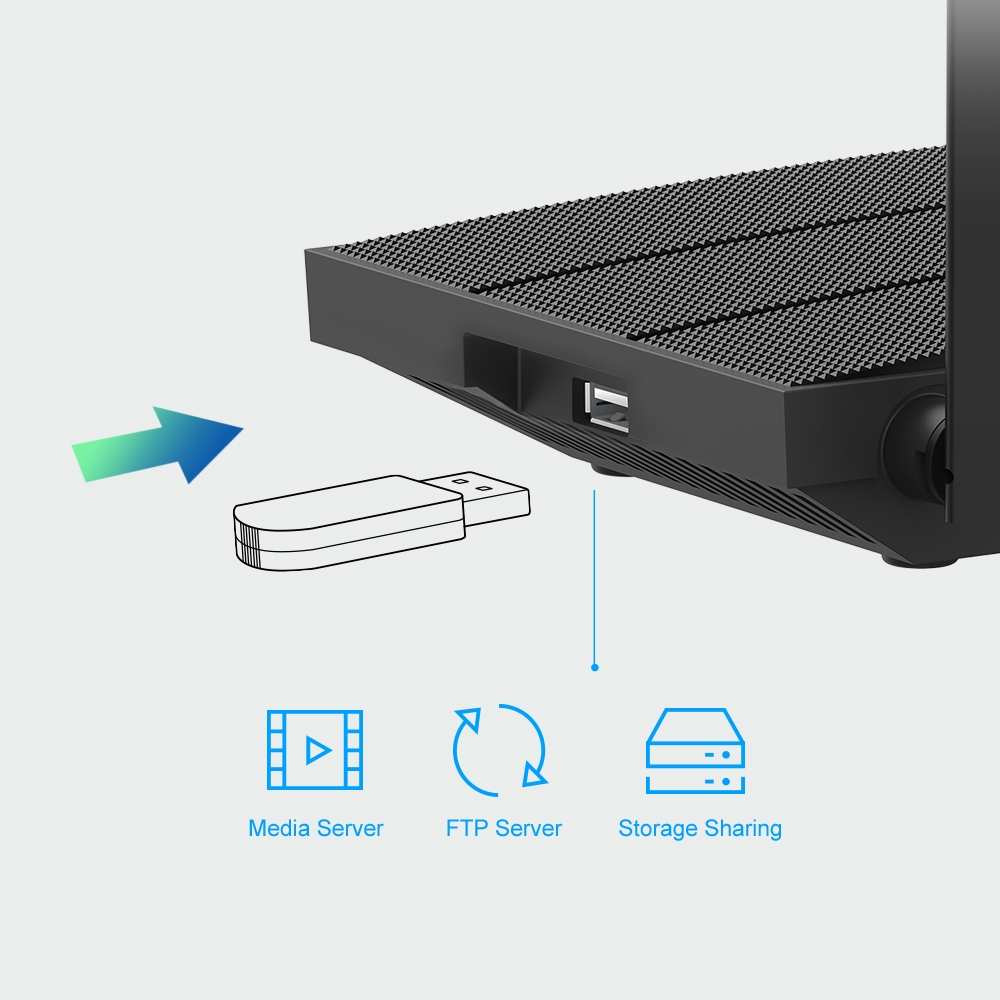

USB Support
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server

Buttons
WPS/Wi-Fi Button
Power On/Off Button
Reset Button

Power
12 V ? 1 A

SECURITY

WiFi Encryption
WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)

Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server
OpenVPN
PPTP

SOFTWARE
Protocols
IPv4
IPv6

Parental Controls
URL Filtering
Time Controls

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
QoS by Device

Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link
NO-IP
DynDNS

Management
Tether App
Webpage
Check Web Emulator>

PHYSICAL
Dimensions (W×D×H)
8.5 × 8.5 × 0.8 in
(215 × 217 × 22 mm)

Package Contents
Wi-Fi Router Archer C6U
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications
FCC, CE, RoHS

Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power
CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity
5GHz:
11a 6Mbps:-93dBm;11a 54Mbps:-78dBm;
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm
