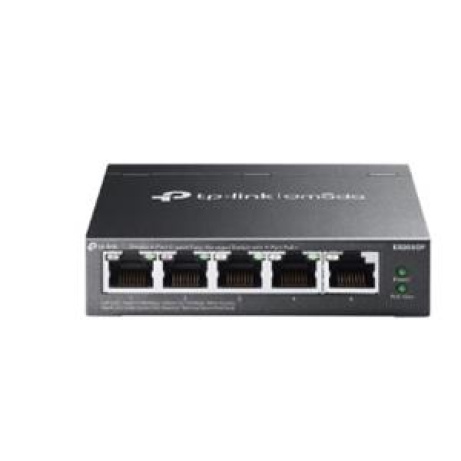

ES205GP Omada 5portový gigabitový Easy Managed Switch se 4 porty PoE+

5× 10/100/1000Mb/s RJ45 portů (4× PoE+ s podporou standardu 802.3at/af)
Napájecí rozpočet 65W, až 30W pro každý PoE port*
Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
Centrální správa přes cloud prostřednictvím webu nebo aplikace Omada†
Až 250 m PoE**, QoS?, automatické obnovení PoE‡ a izolace portů pro spolehlivou síťovou infrastrukturu pro dohled
Automatická prevence smyček, VLAN a IGMP Snooping
Bezhlučný provoz díky bezventilátorovému designu
Odolné kovové pouzdro a design pro umístění na stůl nebo montáž na stěnu

HARDWARE FEATURES
Interface • 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE)
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • Desktop
• Wall Mount
Physical Security Lock ?
Power Supply DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65 W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward
MANAGEMENT
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification FCC, CE, RoHS
Package Contents • ES205GP
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
