Transcend 8GB microSDHC (Class 10) MLC průmyslová paměťová karta (bez adaptéru), 20MB/s R, 18MB/s W, tray

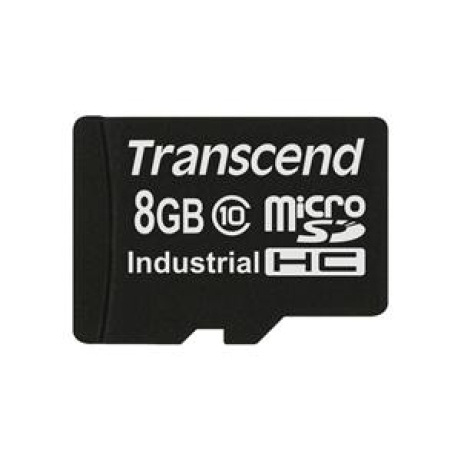

Industrial Temp 8GB microSDHC10I card

Transcend industrial-grade microSD cards offer greater design flexibility and cost savings. Despite their compact size, the microSD cards have excellent temperature flexibility from -40°C to 85°C. The cards are manufactured with high-quality controller and MLC flash chips, providing excellent shock and vibration resistance and low power consumption that help to bring the performance and reliability advantages of industrial memory cards to small form factor devices.

Features
RoHS compliant
Operating Voltage: 2.7 ~ 3.6V
Operating Temperature: -40? to 85?
Durability: 10,000 insertion/removal cycles
Compatible with SD Specification Ver. 3.0
SD File System Specification Ver. 3.0 compliant
Supports Speed Class Specification Class 10
Form Factor: 11mm x 15mm x 1mm
Power cycle robustness
Electrostatic protection (ICE 61000-4-2)
Waterproof (IPX7)
Industrial grade MLC NAND solution
Support S.M.A.R.T function

Interface (connector): microSD flash card connector
Form Factor: microSDHC flash card / microSDXC flash card
Flash Type: MLC
Capacity(GB): 8GB
Max. R/W Performance (MB/s) (Vary by density): Read: 20MB/s, Write: 18MB/s
Op. Voltage (V): 2.7V~3.6V
Power Consumption (W): 0.72W
Op. Temp.(?): -40?~85?
Storage Temp.(?): -40?~85?
Humidity(%): 0%~95%
Shock(G): 600G
Vibration(Hz/G): Operating: 20G (Peak-to-Peak), 20Hz to 2000Hz (Frequency)
Dimensions(mm): 11mm × 15mm × 1mm (0.43" x 0.59" x 0.04")
MTBF(hours): 1,000,000 hours
