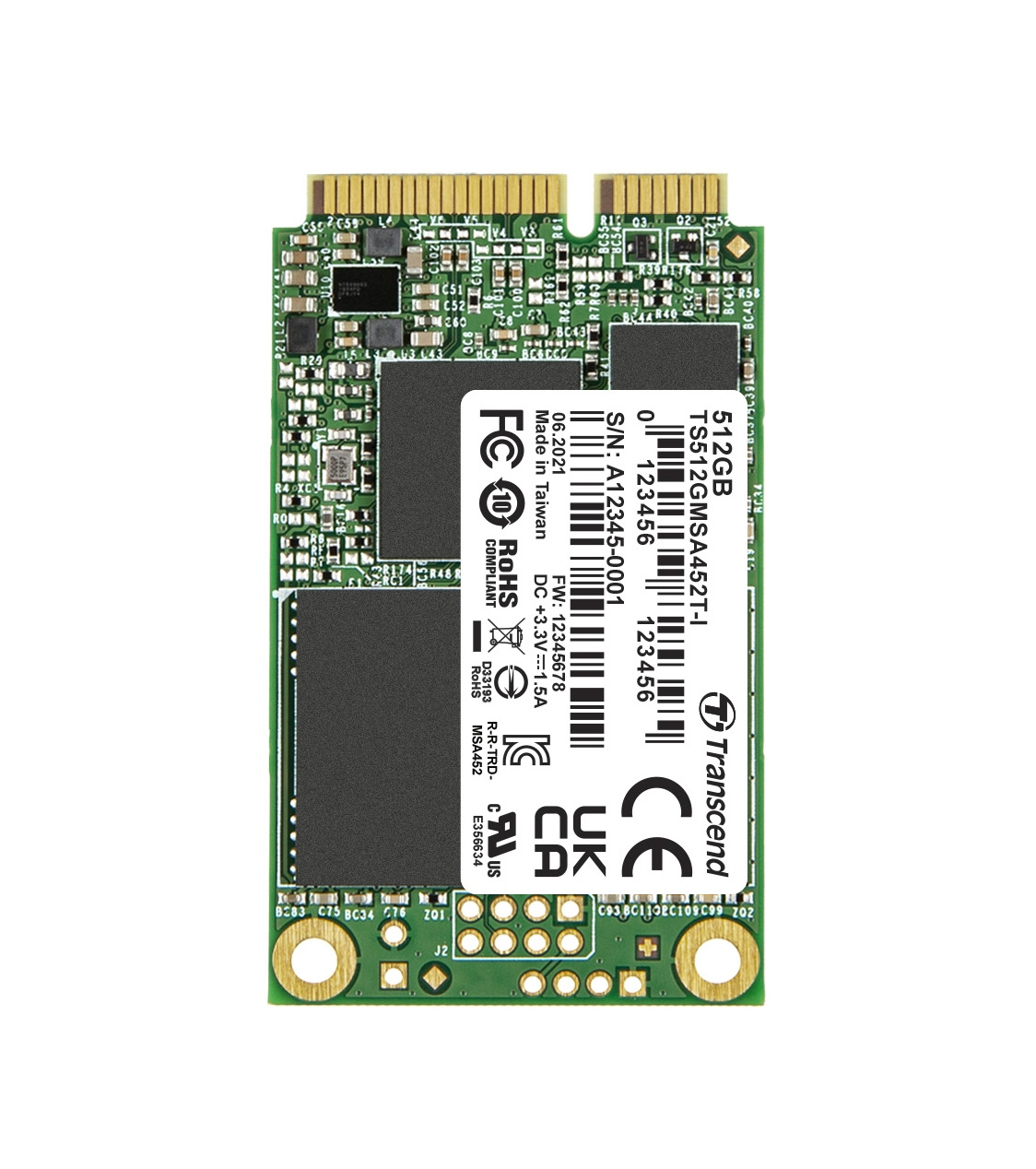

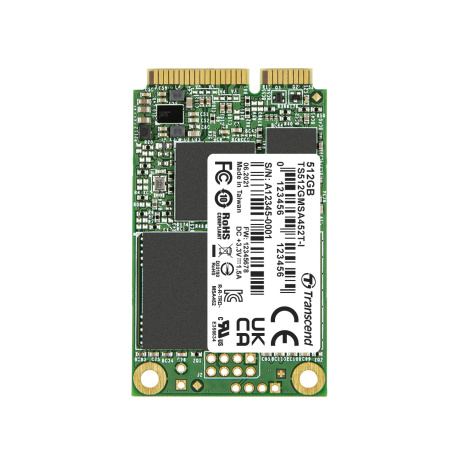

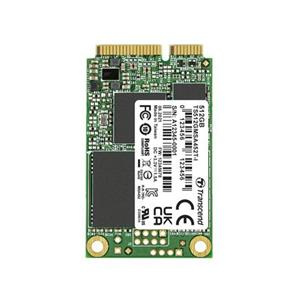

TRANSCEND MSA452T-I 512GB Industrial 3K P/E SSD disk mSATA, SATA III 6Gb/s (3D TLC), 560MB/s R, 520MB/s W

Supporting the Serial ATA interface and built around a powerful controller, Transcend's SATA III 6Gb/s MSA452T mSATA SSD delivers blazing-fast performance, long-term reliability, and high cost-effectiveness. Featuring DRAM cache for fast access and state-of-the-art 96-layer 3D NAND flash, the MSA452T is fully tested to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles. The compact mSATA form factor is just one-eighth the size of a standard 2.5" SSD, making it perfect for use in space-constricted portable devices such as Ultrabooks, tablet PCs, and slim servers.

The MSA452T-I with wide temperature (-40? ~ 85?) capabilities ensures sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Technologies:
- 96-layer 3D NAND Flash
- Wide Temperature
- Thermal Sensor
- Read Disturbance
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Early Move

Firmware Features:
- Supports NVM command
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (optional)

Hardware Features:
- Compliant with RoHS 2.0 standards
- Compliant with JEDEC MO-300A
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- sSupports Transcend Scope Pro software

Software Solutions:

Control Center
Improve your control by easily managing devices at anytime from edge to cloud.

Scope Pro
Manage / analyze data in real time and capture more of your market.

ATA Security Toolbox
Secure your data in just a few easy steps.

One Touch Recovery
Rescue your data with a click to create a reliable and robust environment.


Specifications:
Dimensions: 50.8 mm x 29.85 mm x 4.85 mm
Weight: 8 g (0.28 oz)
Pin Count: 52 pin
Form Factor: mSATA (MO-300A)
Bus Interface: SATA III 6Gb/s
Flash Type: 3D NAND flash
Capacity: 512 GB
Operating Voltage: 3.3V±5%
Operating Temperature:
Wide Temp. -40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Non-operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 2.4 watt(s)
Power Consumption (Sleep): 0.4 watt(s)
Performance:
Sequential Read/Write (CrystalDiskMark):
- Read: up to 560 MB/s
- Write: up to 520 MB/s
4K Random Read/Write (IOmeter):
- Read: up to 95,000 IOPS
- Write: up to 85,000 IOPS
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (TBW): up to 1,760 TBW
Drive Writes Per Day (DWPD): 1.61 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC/BSMI
Warranty: Three-year Limited Warranty

Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.
