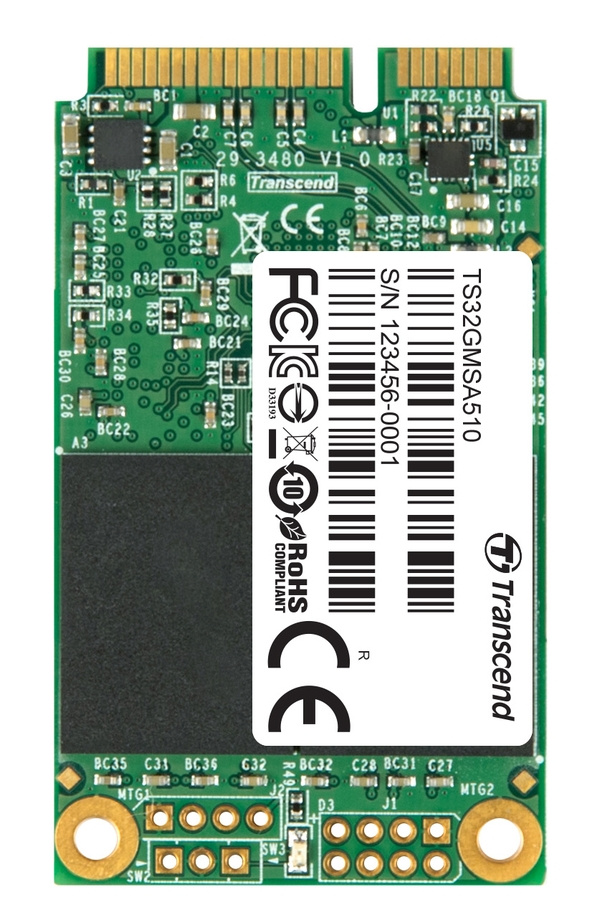

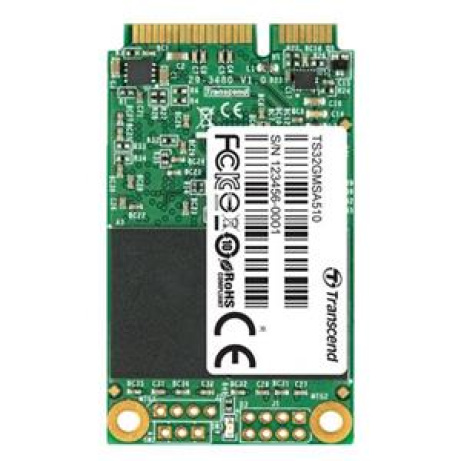

TRANSCEND MSA510 32GB SSD disk mSATA, SATA III (SuperMLC)

Supporting the next-generation Serial ATA interface and built around a powerful controller, Transcend's SATA III 6Gb/s mSATA SSDs deliver blazing-fast performance and long-term reliability. The compact mSATA form factor is just one-eighth the size of a standard 2.5" SSD, making it perfect for use in space-constricted portable devices such as ultrabooks, tablet PCs, and slim servers.

Features:
RoHS compliant
Advanced Global Wear-leveling and Block management for reliability
Built-in ECC (Error Correction Code) functionality
DDR3 DRAM cache
Supports Advanced Garbage Collection, Enhanced S.M.A.R.T. function, Security Command, and Device Sleep Mode (DevSleep)

Specifications:
Interface (connector): SATA III 6Gb/s (mSATA 52-pin)
Form Factor: MO-300
Flash Type: SuperMLC
Capacity(GB): 32GB
Max. Performance (Vary by density):
- Read: 570MB/s
- Write: 470MB/s
Op. Voltage(V): 3.3V±5%
Power Consumption (W): 3.85W (Active), 0.475W (Idle)
Op. Temp.(C): 0C~70C
Storage Temp.(C):-40C~85C
Humidity(%): 0%~95%
Shock(G): 1500G, 0.5ms, 3 axis
Vibration(Hz/G):
- Operating: 3G (Peak-to-Peak), 5-800Hz (Frequency)
- Non-Operating: 5G (Peak-to-Peak), 5-800Hz (Frequency)
Dimensions (mm): 50.8mm x 29.85mm x 4.85mm(max.)
Weight(g): 8g
MTBF(hours): 1,500,000 hours
