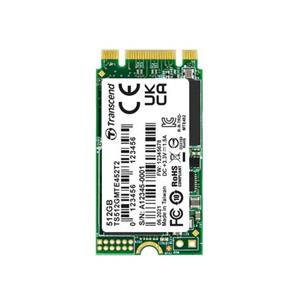

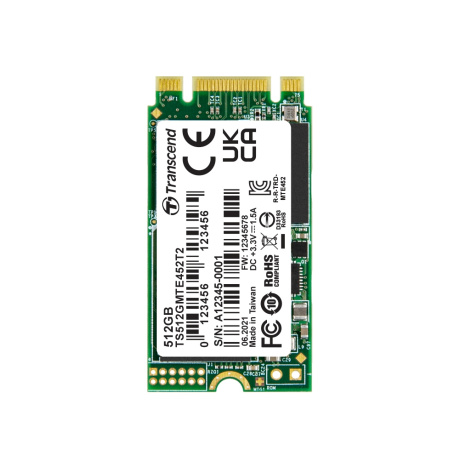

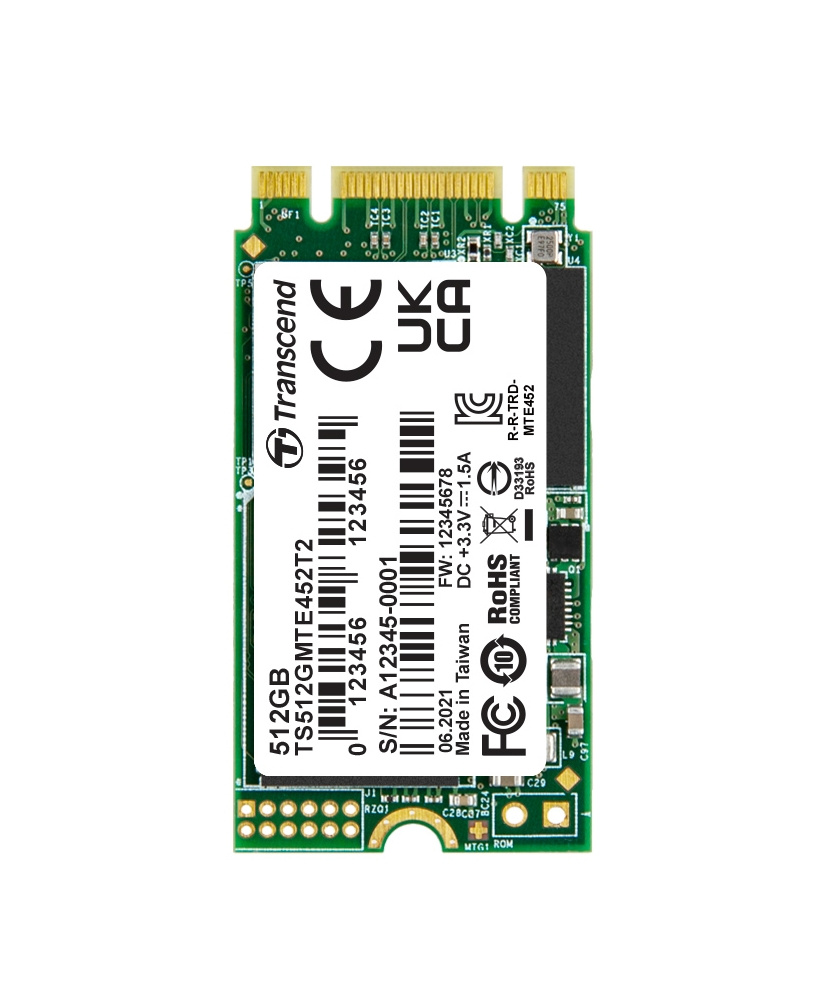

TRANSCEND MTE452T2 512GB Industrial 3K P/E SSD disk M.2, 2242 PCIe Gen3 x2 NVMe 1.3 (3D TLC), B+M Key, 1700MB/s R, 1250MB/s W

Transcend's MTE452T2 M.2 SSD features the PCI Express (PCIe) Gen 3 x2 interface and is compatible with NVM Express (NVMe) 1.3 specifications to achieve never-before-seen transfer speeds. The MTE452T2 features state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 64 layers, this density breakthrough greatly improves storage efficiency, and its built-in DRAM cache allows faster access. Applied with 30µ" gold finger PCB and Corner Bond technology, the MTE452T2 is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and an extended operating temperature ranging from -20°C~75°C.

Technologies:
- 96-layer 3D NAND Flash
- 30µ” PCB Gold Finger
- Corner Bond
- Extended Temperature
- Thermal Sensor
- Read Disturbance
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Early Move

Firmware Features:
- Supports NVM command
- SLC caching technology
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Full drive encryption with Advanced Encryption Standard (AES) (optional)

Hardware Features:
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.3
- Compliant with PCI Express specification 3.1
- Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
- PCIe Gen 3 x2 interface
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Promised operational reliability in an extended temperature range (from -20°C to 75°C)
- Supports Transcend Scope Pro software

Software Solutions:

Control Center
Improve your control by easily managing devices at anytime from edge to cloud.

Scope Pro
Manage / analyze data in real time and capture more of your market.

One Touch Recovery
Rescue your data with a click to create a reliable and robust environment.


Specifications:
Dimensions: 42 mm x 22 mm x 3.58 mm
Weight: 5 g (0.18 oz)
Form Factor: M.2
M.2 Type: 2242-D2-B-M (Double-sided)
Bus Interface: NVMe PCIe Gen3 x2
Flash Type: 3D NAND flash
Capacity: 512 GB
Operating Voltage: 3.3V±5%
Operating Temperature:
Extended Temp.-20°C ~ 75°C
Storage Temperature: -55°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 2.81 watt(s)
Power Consumption (IDLE): 0.63 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark):
- Read: up to 1,700 MB/s
- Write: up to 1,250 MB/s
4K Random Read/Write (IOmeter):
- Read: up to 200,000 IOPS
- Write: up to 250,000 IOPS
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (TBW): up to 1,080 TBW
Drive Writes Per Day (DWPD): 2 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC/BSMI
Warranty: Three-year Limited Warranty

Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.
