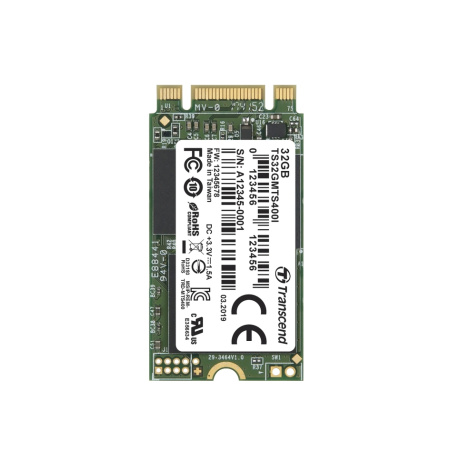

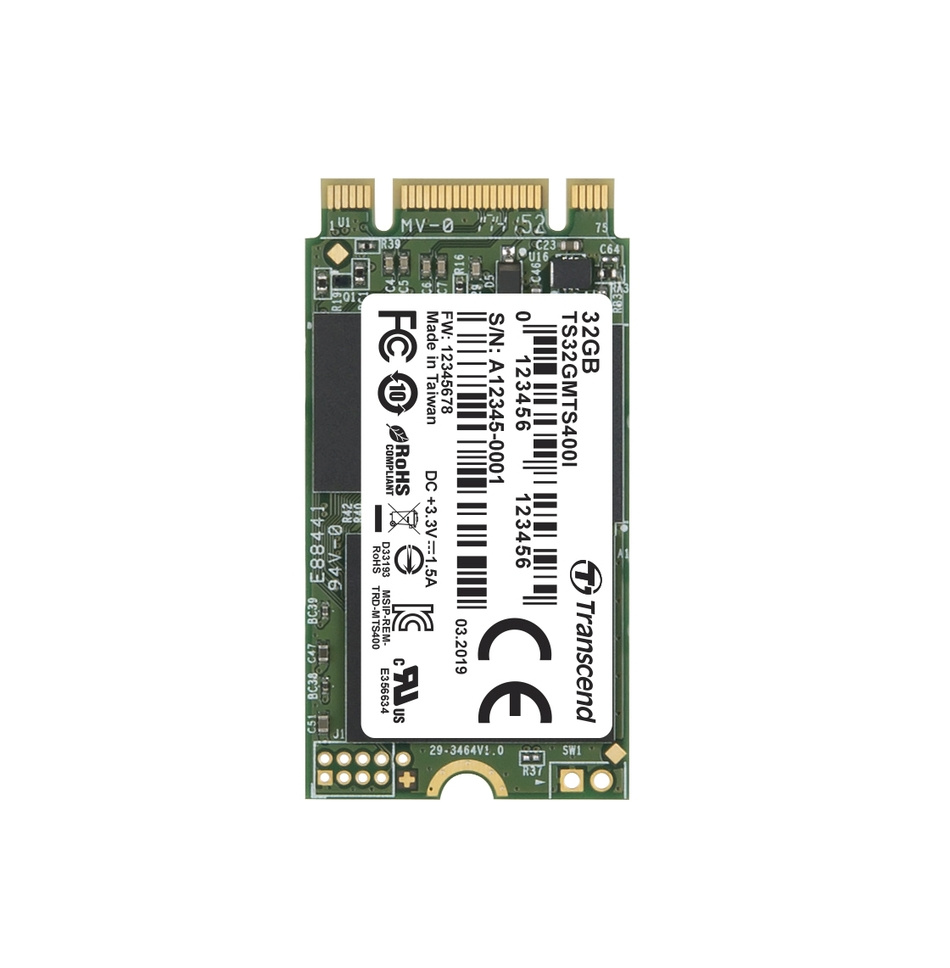

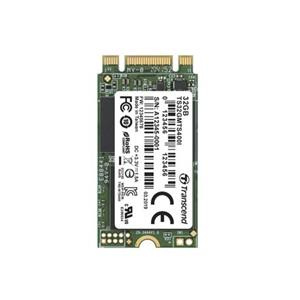

TRANSCEND MTS400I 32GB Industrial SSD disk M.2 2242, SATA III 6Gb/s (MLC), 280MB/s R, 50MB/s W

Transcend’s MTS400I with SATA III 6Gb/s interface and ultra compact dimensions make it best suited to address the high-performance needs and strict size limitations of small form factor devices. This means it is perfect for use in today’s modern ultrabooks, thin and light notebooks, and tablets. Built with the latest SATA III 6Gb/s specifications, and with a powerful controller and exceptional transfer speeds, the M.2 SSD easily handles everyday computing tasks as well as demanding multimedia applications. With wide temperature (-40°C ~ 85°C) capabilities MTS400I ensures sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

With wide temperature (-40°C ~ 85°C) capabilities MTS400I ensures sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Features:
Space-saving M.2 form factor (42mm) – ideal for mobile computing devices
Wide-temperature model available: promised operational reliability in a wide temperature range (from -40? to 85?)
DRAM cache
Supports S.M.A.R.T., TRIM and NCQ command
Compliant with RoHS 2.0 standards
Power-saving DevSleep (Device Sleep) mode (optional)
MLC NAND Flash

Specifications:
Dimensions: 42.0 mm x 22.0 mm x 3.58 mm (1.65" x 0.87" x 0.14")
Weight: 5 g (0.18 oz)
Form Factor: M.2
M.2 Type: 2242-D2-B-M
Bus Interface: SATA III 6Gb/s
Flash Type: MLC NAND flash
Capacity: 32 GB
Operating Voltage: 3.3V±5%
Operating Temperature: -40°C (-40°F) ~ 85°C (185°F)
Storage Temperature: -40°C (-40°F) ~ 85°C (185°F)
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Vibration (Non-operating): 5 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Power Consumption (Operation): 2.48 watt(s)
Power Consumption (Sleep): 0.48 watt(s)
Sequential Read/Write (CrystalDiskMark, max.):
- Read: 280 MB/s
- Write: 50 MB/s
4K Random Read/Write (IOmeter, max.):
- Read: 70,000 IOPS
- Write: 50,000 IOPS
Mean Time Between Failures (MTBF): 2,500,000 hour(s)
Terabytes Written (Max.): 90 TB
Drive Writes Per Day (DWPD): 2 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.

Certificate : CE/FCC/BSMI
Warranty: Three-year Limited Warranty

Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
SSD Scope Pro software is required by request. Please contact us for more information.
