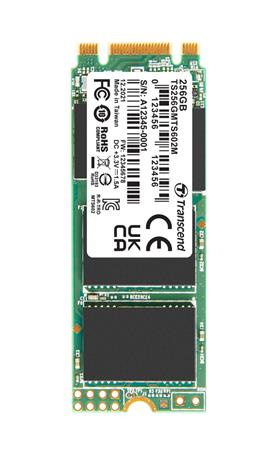

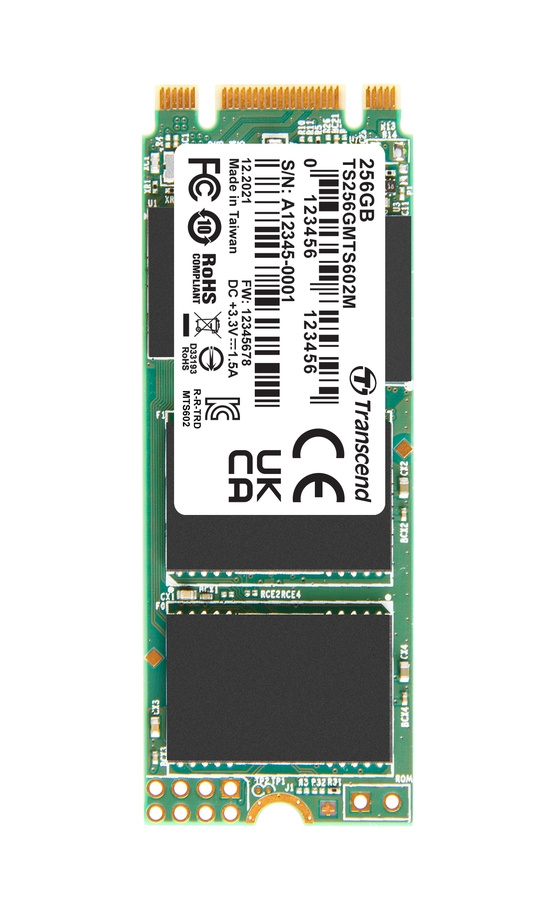

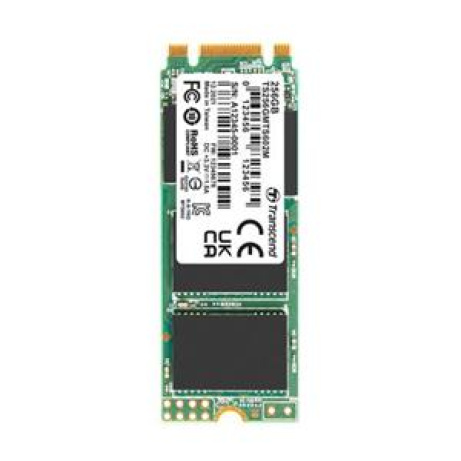

TRANSCEND MTS602M 256GB SSD disk M.2 2260, SATA III 6Gb/s (MLC), 530MB/s R, 450MB/s W

Transcend’s MTS602M with SATA III 6Gb/s interface and ultra compact dimensions make it best suited to address the high-performance needs and strict size limitations of small form factor devices. This means it is perfect for use in today’s modern ultrabooks, thin and light notebooks, and tablets. Built with the latest SATA III 6Gb/s specifications, and with a powerful controller and exceptional transfer speeds, the M.2 SSD easily handles everyday computing tasks as well as demanding multimedia applications.

Transcend also offers the MTS602I with wide temperature (-40°C ~ 85°C) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Technologies:
- 30µ” PCB Gold Finger
- Corner Bond
- Wide Temperature
- Thermal Sensor
- Read Disturbance
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Early Move

Firmware Features:
- Built-in BCH ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode

Hardware Features:
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (60mm) – ideal for mobile computing devices
- DDR3 DRAM Cache embedded
- MLC NAND flash
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
- Supports Transcend Scope Pro software

Software Solutions:

Control Center
Improve your control by easily managing devices at anytime from edge to cloud.

Scope Pro
Manage / analyze data in real time and capture more of your market.

One Touch Recovery
Rescue your data with a click to create a reliable and robust environment.

Specifications:
Dimensions: 60 mm x 22 mm x 3.58 mm
Weight: 7 g
Form Factor: M.2
M.2 Type: 2260-D2-B-M (Double-sided)
Bus Interface: SATA III 6Gb/s
Flash Type: MLC NAND flash
Capacity: 256 GB
Operating Voltage: 3.3V±5%
Operating Temperature: 0°C ~ 70°C
Storage Temperature: -40°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)
Power Consumption (Operation): 2.50 watt(s)
Power Consumption (Sleep): 0.35 watt(s)
Sequential Read/Write (CrystalDiskMark):
- Read: up to 530 MB/s
- Write: up to 450 MB/s
4K Random Read/Write (IOmeter):
- Read: up to 70,000 IOPS
- Write: up to 70,000 IOPS
Mean Time Between Failures (MTBF): 2,500,000 hour(s)
Terabytes Written (TBW): up to 1,480 TBW
Drive Writes Per Day (DWPD): 2.6 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate: CE/FCC/BSMI/UKCA
Warranty: Three-year Limited Warranty

Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.
