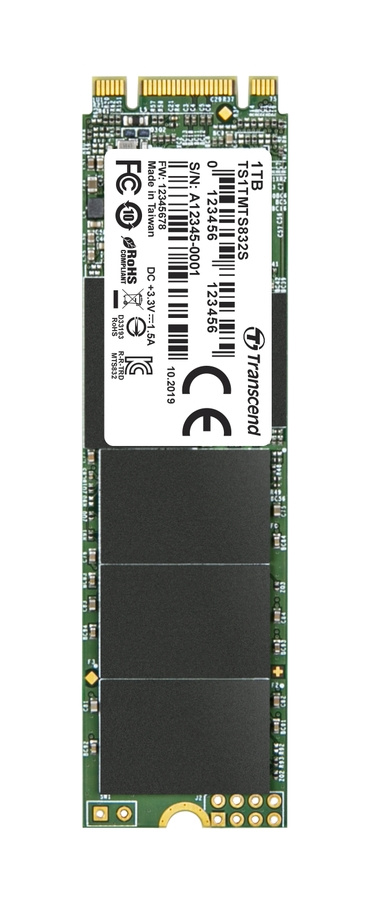

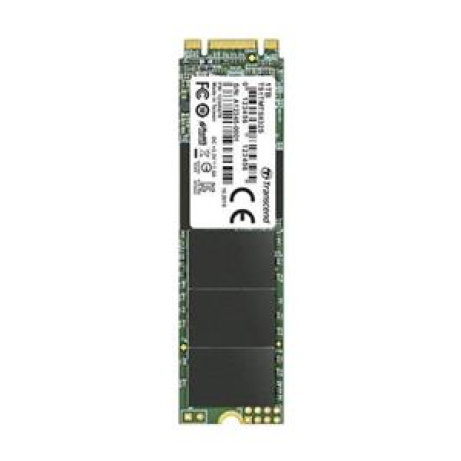

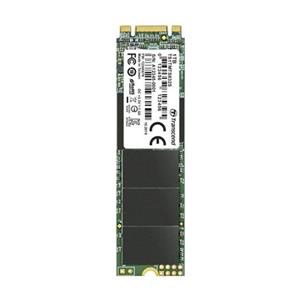

TRANSCEND MTS832S 1TB SSD disk M.2, 2280 SATA III 6Gb/s (3D TLC) single sided, 560MB/s R, 500MB/s W

Transcend's M.2 SSD 832S adopts a single-sided M.2 2280 form factor, making it slimmer and highly compatible with space-limited applications and small form factor devices, such as thin, light notebooks and high-performance PCs. Featuring the SATA III 6Gb/s interface, DDR3 DRAM cache, enhanced firmware algorithms, and built with high-quality NAND flash, the ultra-compact M.2 SSD 832S delivers high performance and peerless reliability.

3D expansion to break through limits
Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.

Single-sided to fit perfectly in small form factor devices
Compliant with M.2 form factor Type 2280, Transcend's 3D NAND M.2 SSD 832S is just 80mm in length and comes in a single-sided layout - meaning that only one side of the SSD has components attached to it - making the 832S the perfect solution for small form factor laptops and ultra-light PCs. The M.2 SSD 832S makes for an easy upgrade to your computer, taking up little space while giving it a much needed energy boost.

Superior transfer speeds
Featuring the M.2 standard (80mm), the next generation SATA III 6Gb/s interface and a powerful controller, Transcend's M.2 SSD 832S reaches incredible read and write speeds of up to 560MB/s and 500MB/s. When used as a cache, the M.2 SSD 832S provides 1.5 times faster boot time than conventional hard drives.

High IOPS to speed up loading times
Dedicated to maximizing high-performance computing, the M.2 SSD 832S features 4k random file read and write speeds up to 85,000 IOPS that deliver incredibly short loading times and almost instant response for heavy graphics and multimedia applications.

Store more in less space
The M.2 form factor enables expansion and integration of functions onto a single form factor module solution. M.2 SSDs include a smaller form factor but with larger capacities than that of mSATA and half-slim SSDs. With its singled-sided M.2 form factor, the SSD 832S is even slimmer and offers better compatibility.

Potent and feature-laden
Despite its extra-small dimensions, the M.2 SSD 832S boasts a DDR3 DRAM cache and contains advanced features to enhance the performance of the SSD.

Error Correcting Code (ECC)
Detects and corrects transfer errors to prevent data corruption

Garbage Collection
Relocates existing data to release memory blocks

Wear-leveling
Distributes data evenly across memory cells to prolong SSD's lifespan

DDR3 DRAM cache
Stores a temporary copy of the most active data to shorten access times

SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.

Guaranteed quality
Transcend’s solid state drives are built to the highest standards and rigorously tested, and offer outstanding quality, performance, and reliability.

Specifications:
Dimensions: 80.0 mm x 22.0 mm x 2.23 mm (3.15" x 0.87" x 0.09")
Weight: 9 g (0.32 oz)
Bus Interface: SATA III 6Gb/s
Flash Type: 3D NAND flash
Capacity: 1TB
Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
Operating Voltage: 3.3V±5%
Sequential Read/Write (CrystalDiskMark): 560/500 MB/s
4K Random Read/Write (IOmeter): 85,000/85,000 IOPS
Terabytes Written (TBW): 560 TBW
Mean Time Between Failures (MTBF): 2,000,000 hour(s)
Drive Writes Per Day (DWPD): 0.3 (5 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Certificate : CE/FCC/BSMI
Warranty: Five-year Limited Warranty

Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.

System Requirement:
Operating System
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows 10
Linux Kernel 2.6.31 or later

Note
Please make sure that your computer has a M.2 slot.

Technology:
TRIM & NCQ Command
S.M.A.R.T.
DDR3 DRAM Cache
Advanced Garbage Collection
RAID Engine
LDPC Coding
