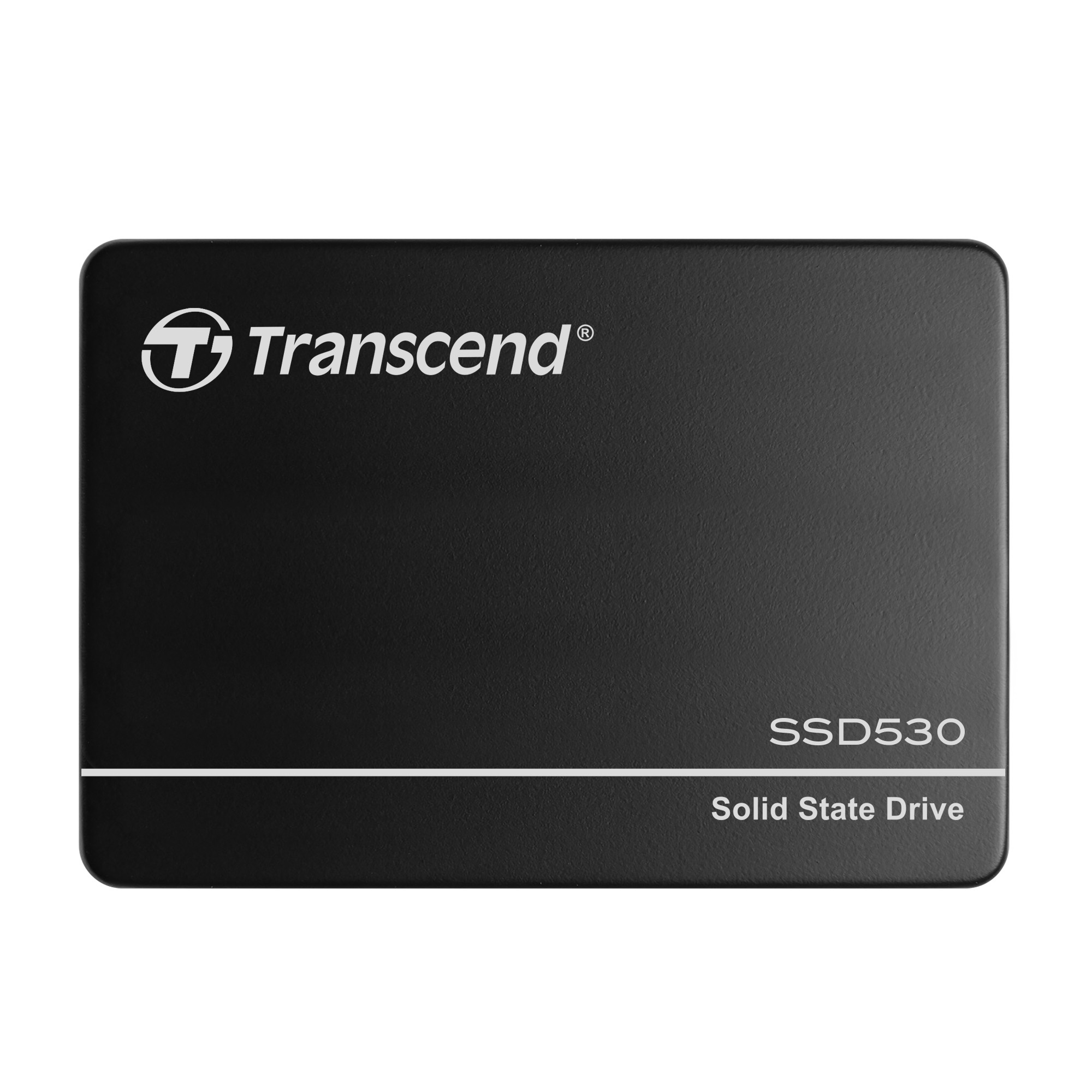

TRANSCEND SSD530K 128GB Industrial (100K P/E) SSD disk 2.5" SATA3, 3D TLC (SLC mode), Aluminium case, 560MB/s R, 490 MB/W

Transcend’s SSD530K features the SATA III 6Gb/s interface, 3D NAND flash memory, and Transcend’s exclusive SLC mode technology. Combined, these provide superior reliability and endurance nearly equivalent to SLC, yet at a cost-effective price. The SSD530K comes equipped with a DRAM cache for fast access, and is made to operate well in extended temperature(-20?~75?), ideal for embedded applications, such as embedded automation computers, engineering machines, and fanless PCs. Reliable speeds and customized functions cater to the requirements of various embedded system applications.

Technologies:
- 96-layer 3D NAND Flash
- SLC Mode
- Corner Bond
- Extended Temperature
- Dynamic Thermal Throttling
- Thermal Sensor
- Read Disturbance
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Power Shield (PS)
- Early Move

Firmware Features:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Early Move
- Enhanced S.M.A.R.T. function for durability
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode

Hardware Features:
- Compliant with RoHS 2.0 standards
- DDR3 DRAM Cache embedded
- High-quality 3D NAND flash and SLC mode for exceptional endurance and reliability
- Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- Promised operational reliability in an extended temperature range (from -20°C to 75°C)

Specifications:
Dimensions: 100 mm x 69.85 mm x 6.8 mm
Weight: 54 g
Form Factor: 2.5"
Bus Interface: SATA III 6Gb/s
Flash Type: 3D NAND flash (SLC mode)
Capacity: 128 GB
Operating Voltage: 5V±5%
Operating Temperature: Extended -20°C ~ 75°C
Storage Temperature: -40°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 2.8 watt(s)
Power Consumption (Sleep): 0.4 watt(s)
Sequential Read/Write: (CrystalDiskMark, max.)
- Read: up to 560 MB/s
- Write: up to 490 MB/s
4K Random Read/Write (IOmeter, max.):
- Read: up to 83,000 IOPS
- Write: up to 88,000 IOPS
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (Max.): 6,400 TBW
Drive Writes Per Day (DWPD): 45.7 (3 yrs)

Note:
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Certificate: CE/FCC/BSMI
Warranty: Three-year Limited Warranty

Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.
