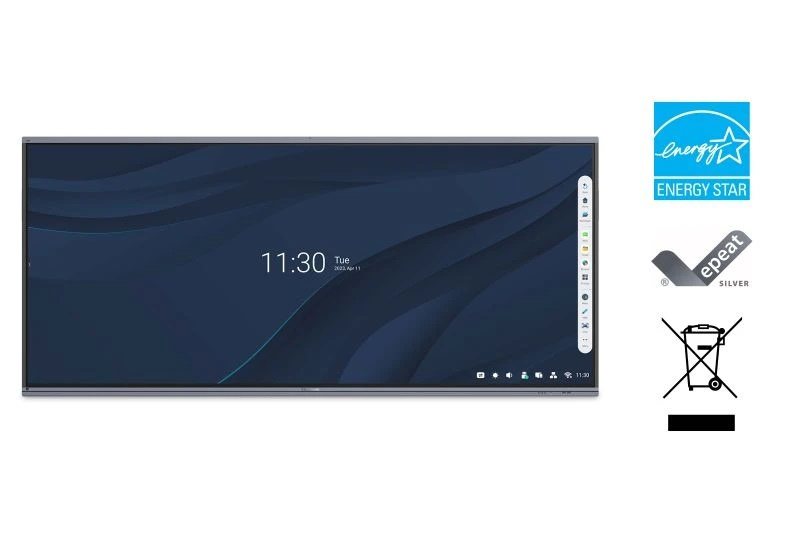

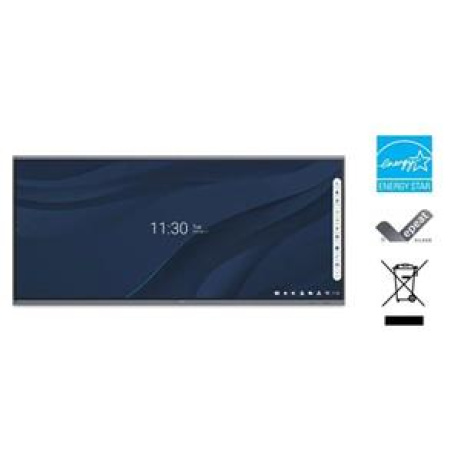

Ultrawide 21:9 ratio, 105" screen in 5K resolution for enhanced multi-tasking and collaboration
Seamless video conferencing with comprehensive 8-mic array
Pen-on-paper writing experience with Ultra Fine Touch Technology, up to 40 touch points
Effortless wireless screen sharing of up to 9 devices with vCast
2 USB-C ports for enhanced productivity

Panel Size: 105"
Panel Type: TFT LCD Module with DLED Backlight, VA
Display Area (mm): 2449.92(H) x 1033.56 (V) (104.6”diagonal)
Aspect Ratio: 21:9
Resolution: WUHD 5120x2160(Pixels)
Colors: 1.07B colors
Brightness: 400 nits
Contrast Ratio: 4000:1(Typ.)
5000:1(Min. with DCR enabled)
Response Time: 6.5ms
Viewing Angles: H = 178, V = 178 (Typ.)
Backlight Life: 50,000 Hours (Min.)
Surface Treatment: Panel Hard Coating 3H
Glass Anti-Glare 7H
Bezel: 19.5/19.5/29.8/41.2 mm
Orientation: Landscape
Disclaimer: 50,000 hours backlight life at 8 hours of use per day
Platform
Processor: Octa-Core CPU (A76*4 + A55*4)
RAM: 8GB LPDDR
Storage: 128GB eMMC
Touch
Type/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: Windows: 40 Android: 20
INPUT
HDMI: x4 (Rear x3 :HDMI 2.0 with CEC; Rear x 1 HDMI 2.1 with CEC)
DisplayPort: 1
Audio: 1
MIC(Microphone): Built-in 8 Array Microphone
RS232: 1
OPS: X1 OPS Slot
WiFi: X1 Module Slot
OUTPUT
HDMI: 1
Audio: 1
SPDIF: 1
LAN
RJ45: X2 (inx1;outx1;1000m for Android/PC;100m for type-C)
USB
Type A: USB2.0 x 1 (Bottom) (for FW upgrade)
USB3.0 x 6 (Top x 2 + Rear x 2 + Front x2 ), all support Smart USB
Type B: 3 (Bottom x 1; Rear x 2)
Type C: 2 [Rearx1: PD65W(65W with OPS, 100W without OPS) + DP1.2 + Data + 10M/100M sharing ; Front x1:PD15W + DP1.2 + Data + 10M/100M sharing]
SPEAKERS
20W x 2 + 20W x 1 subwoofer
Top Camera Plate
Yes
Embedded OS
Android 13
Bundle Software
Wireless Presentation with Touch Feedback: Viewboard Cast: Single screen sharing with Chromecast or up to 9 devices with vCast Sender or Airplay. No additional download is required to cast using Airplay or Chromecast.
Special Features
All-in-one USB port: Yes
Simple LAN sharing between IFP and slot-in device: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: x1
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On: 275W(typ.) / Off: <0.5W
ERGONOMICS
Wall Mount (VESA® ): 1000 x 400
OPERATING CONDITIONS
Temperature (o C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 98.71 x 44.49 x 4.06 in / 2507.2 x 1130.1 x 103.2mm
Packaging (inch / mm): 105.19 x 51.38 x 11.02 in / 2668 x 1305 x 280mm
WEIGHT
Net (lb / kg): 201.5lb/91.4Kg
Gross (lb / kg): 225.1lb/115.7Kg
REGULATIONS
cTUVus,FCC/ICES003, LBL(low blue light filter), FF(Flicker free), CE EMC, CB, RoHS Green BOM, RoHS DoC, ErP, REACH SVHC List, DoC, EEL, WEEE, BSMI
Energy Star version
ES 8.0
PACKAGE CONTENTS
1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. Remote control with AAA battery x2
4. 3m touch USB cable(USB 2.0)
5. Touch pen x 2 (VB-PEN-008)
6. Quick Start Guide with Compliance statement
7. RS232 adapter
8. Clamp x 5
9. Camera Plate x 2(1 for VB-CAM-201, 1 for UMB202)
10. Screw x 11 (Camera 2+4+1, wall mount 4)
11. HDMI cable 3m(HDMI LA certified)
12. Wi-Fi Dongle x 1(VB-WIFI-004)
