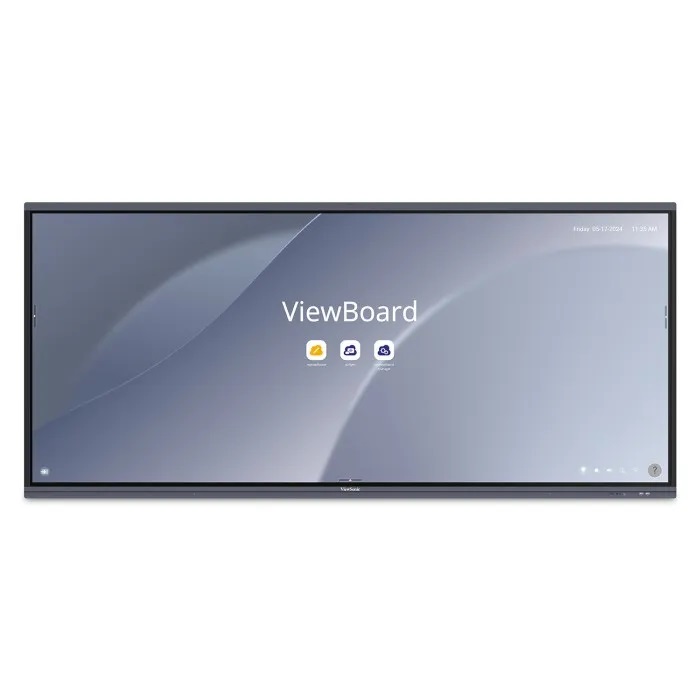

Home IFP92UW - 92" 5K 21:9 ViewBoard interactive display with integrated microphone and USB-C
IFP92UW
IFP92UW - 92" 5K 21:9 ViewBoard interactive display with integrated microphone and USB-C
Optimized for Microsoft Teams Front Row: Support for Microsoft Teams Room™ and Front Row optimizes group efficiency
INTEGRATED SOFTWARE: vCast software enhances collaboration with easy content sharing and annotation
ADVANCED TOUCH: Up to 40-point multi-touch lets users write on the display with their fingers and included stylus
STUNNING 5K RESOLUTION: 5120 x 2160 resolution delivers incredibly detail and vibrant images
BUILT-IN MICROPHONE AND SOUNDBAR: Speak and be heard by in-person and remote audiences.
USB-C with Power Delivery: Integrated USB-C with 100W power delivery
DEVICE MANAGEMENT: Schedule updates and monitor device status with the built-in ViewSonic Manager™ software
PEACE OF MIND: Industry-leading 3-year standard limited warranty with optional extensions and robust support services

OS: ViewBoard OS
GPU: Mali-G610
CPU: Octa-Core CPU (A76*4 + A55*4)
Memory: 8GB LPDDR
Storage: 128GB eMMC5.0
Microphone: Beamforming array x 8, full duplex echo cancellation
Internal Speakers: 16W (x2)
Subwoofer: 15W (x1)
Intel® OPS Slot In (80-pin): 1
Voltage: 100-240 VAC
Consumption (typical): 275W
Stand-by: <0.5W
Temperature: 32-104o F (0 - 40o C)
Humidity (non-condensing): 20-80%
Touch Technology: Infrared
Touch Points: Windows: 40, Android: 20
Tip Detection: Dual tips: 2mm and 8mm, Finger: 10-15mm, Palm: 30mm
Other: Object Awareness
Latency: ?5ms
Net (lbs): 149.0
Gross (lbs): 195.1
Net (kg): 67.6
Gross (kg): 88.5
Packaging (in.): 95.52 x 44.72 x 8.5
Physical (in.): 86.73 x 39.37 x 3.62
Packaging (mm): 2350 x 1136 x 216
Physical (mm): 2203 x 1000 x 92
VESA Compatible: 1000x400
Screw Size: M8
Warranty: 3-year limited warranty on parts, labor and backlight, onsite warranty
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Package Contents: IFP92UW, Power Cord (3m), USB-C Cable (1.8m) Remote control with AAA battery, USB Touch Cable (3m), Stylus x 2, Quick Start Guide + Compliance statement, RS232 adapter, Clamp x 5, Camera Plate, Screw x 8, HDMI cable 3m, VB-WIFI-004 WiFi Adapter
Regulations: CTUVus, FCC, Energy 8.0, EPEAT, CEC
Ethernet LAN: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Wifi: VB-WIFI-004 adapter, 802.11AX + Bluetooth 5.2
Viewable Area (in.): 91.52
Light Source: DLED
Display Resolution: 5120 x 2160
Refresh Rate: 60Hz
Aspect Ratio: 21:9
Static Contrast Ratio: 4,000:1
Dynamic Contrast Ratio: 5,000:1
Backlight Life (Hours): 50,000
Brightness: 400 cd/m2
Response Time (Typical GTG): 6.5ms
Viewing Angles: 178o horizontal, 178o vertical
Panel Surface: Anti-glare 9H tempered glass
