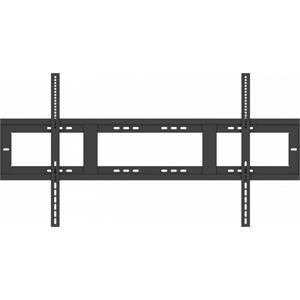

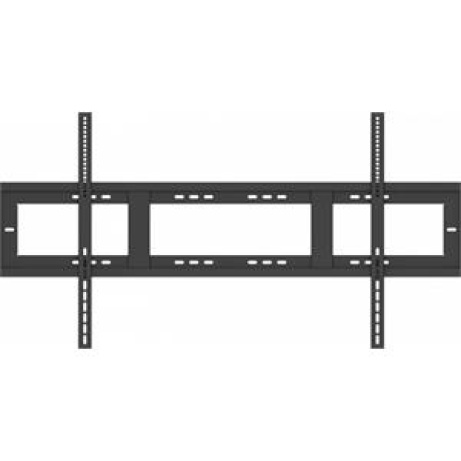

Viewsonic VB-WMK-003 držák na displej 55" až 98"
Výrobce:ViewSonic
Kód produktu:i26_VWS00038
Part number:VB-WMK-003
Záruka:35 měsíců
Dostupnost:
na dotaz
ZBOŽÍ NENÍ AKTUÁLNĚ SKLADEM. O SKLADOVÉ DOSTUPNOSTI SE INFORMUJTE NA EMAILU, NEBO SI NASTAVTE NÍŽE " SLEDOVAT CENU "
Popis
Parametry produktu
VB-WMK-003
Fixed Wall Mount for ViewBoard and Presentation Display
Secure locking screw
Up to 150kg load capacity and 105" display
VESA standard support up to 1000x600mm
Durable coated finish
The VB-WMK-003 is designed to mount 55" to 105" ViewBoard and Presentation Display
SPECIFIKACE
Mounting Pattern Max. Mount
up to 1000x600mm
Screw Type
M5, M8
Materiál
Iron
Dimension (WxHxD)
Fyzicky (VxŠxH): 1260×650×45mm / 49.6x 25.6 x 1.77 in
Balení (ŠxVxH): 1340×358×60mm / 52.75 x 14.1 x 2.36 in
Weight (Net)
Čistá hmotnost: 6.8kg / 15 lb (Support Max. Weight: 150 kg)
Hrubý: 7.6 kg / 16.76lb
Support Flat Panel Size
55"~105"
Min. Distance To The Wall
45 mm / 1.77 in
Included Accessories
1.Expansion rubber: ?12×60mm, PMMA, 10 PCS (8 pcs for installation, 2 pcs for spare)
2.Screw to fix IFP on wall mount:M8×25mm, 6 PCS (4 pcs for installation, 2 pcs for spare)
3.Screw to fix wall mount on wall: M8.0×60mm, 8.8H, 10 PCS (8 pcs for installation, 2 pcs for spare)
4.Screw for spare: M5×15mm, 4 pcs (2 pcs for installation, 2 pcs for spare)
5.Washer:? 20× ? 8.5× 1.5mm, 10 PCS (8 pcs for installation, 2 pcs for spare)
6.Guide X 1
Fixed Wall Mount for ViewBoard and Presentation Display
Secure locking screw
Up to 150kg load capacity and 105" display
VESA standard support up to 1000x600mm
Durable coated finish
The VB-WMK-003 is designed to mount 55" to 105" ViewBoard and Presentation Display
SPECIFIKACE
Mounting Pattern Max. Mount
up to 1000x600mm
Screw Type
M5, M8
Materiál
Iron
Dimension (WxHxD)
Fyzicky (VxŠxH): 1260×650×45mm / 49.6x 25.6 x 1.77 in
Balení (ŠxVxH): 1340×358×60mm / 52.75 x 14.1 x 2.36 in
Weight (Net)
Čistá hmotnost: 6.8kg / 15 lb (Support Max. Weight: 150 kg)
Hrubý: 7.6 kg / 16.76lb
Support Flat Panel Size
55"~105"
Min. Distance To The Wall
45 mm / 1.77 in
Included Accessories
1.Expansion rubber: ?12×60mm, PMMA, 10 PCS (8 pcs for installation, 2 pcs for spare)
2.Screw to fix IFP on wall mount:M8×25mm, 6 PCS (4 pcs for installation, 2 pcs for spare)
3.Screw to fix wall mount on wall: M8.0×60mm, 8.8H, 10 PCS (8 pcs for installation, 2 pcs for spare)
4.Screw for spare: M5×15mm, 4 pcs (2 pcs for installation, 2 pcs for spare)
5.Washer:? 20× ? 8.5× 1.5mm, 10 PCS (8 pcs for installation, 2 pcs for spare)
6.Guide X 1
RJ45 (monitory):Ne
