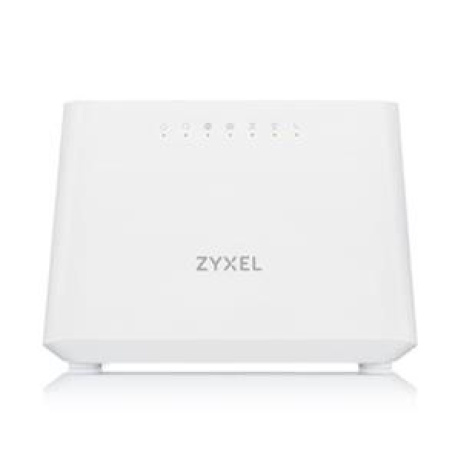

DX3301, WiFi 6 AX1800 VDSL2 IAD 5-port Super Vectoring Gateway (upto 35B) and USB with Easy Mesh Support

WiFi 6 AX1800 VDSL2 5-port Super Vectoring Gateway (upto 35B) and USB with Easy Mesh Support

The Zyxel DX3301-T0 provides high-speed internet access with QoS support to meet the worldwide market demand for triple-play services. With the built-in 2x2 802.11ax WLAN function and Zyxel MPro Mesh® Solutions, the Series provides seamless WiFi experience and superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services.

WiFi 6 (11ax) for superior performance and coverage
Zyxel MPro Mesh® Solutions (compliant with EasyMesh standards)
Remote management via TR-069 and TR-181 i2
NAT, firewall with SPI and DoS for better security
VoIP SIP protocol with 3-way conference calls
Multiple SSIDs for various service deployment scenarios
Zyxel-developed OPAL for superior flexibility and faster time-to-market
Ecofriendly compact design

WiFi 6 technology for superior lag-free performance
Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.

Zyxel OPAL firmware achieves superior flexibility and faster time-to-market
Compliant with the same OPAL firmware trunk applied in all Zyxel CPEs,the Series inherits a rich, field-proven feature set for guaranteed unchanged user experience even after migrating to the new devices.

Premium MPro Mesh® for whole-home coverage**
Featuring EasyMesh fully compliant Zyxel MPro Mesh® Solutions, the Series enhances your subscribers’ experience by providing self-adapting, easy-to-manage whole-home WiFi coverage, while reducing your service OPEX.

Quality of Service (QoS) support
With QoS features, service providers can freely design their QoS policies and prioritize mission-critical services such as IPTV and VoIP based on their service plan offerings. This improves network efficiency and productivity that enable service providers to offer a real multi-play solution to meet the residential user needs.

TR-069/TR-181 issue-2 remote management for lower OPEX
Compliant with TR-069, the Series significantly simplifies deployment complexity and lowers operating and maintenance costs. The additional support to the latest TR-181 issue-2 data model also enhances service providers' visibility on subscriber LAN networks to offer improved customer assistance.

Ecofriendly compact design

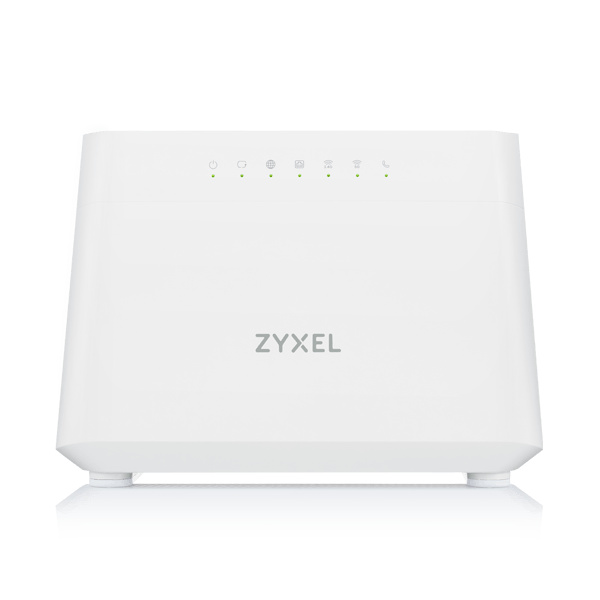

Zyxel commits to a sustainable future and to improving the environmental well-being of the community. The Zyxel DX3301-T0 adopts foldable stands with an ultra-thin exterior case to shrink each package volume, which improves pallet utilization by approximately 46% for lower carbon emissions.

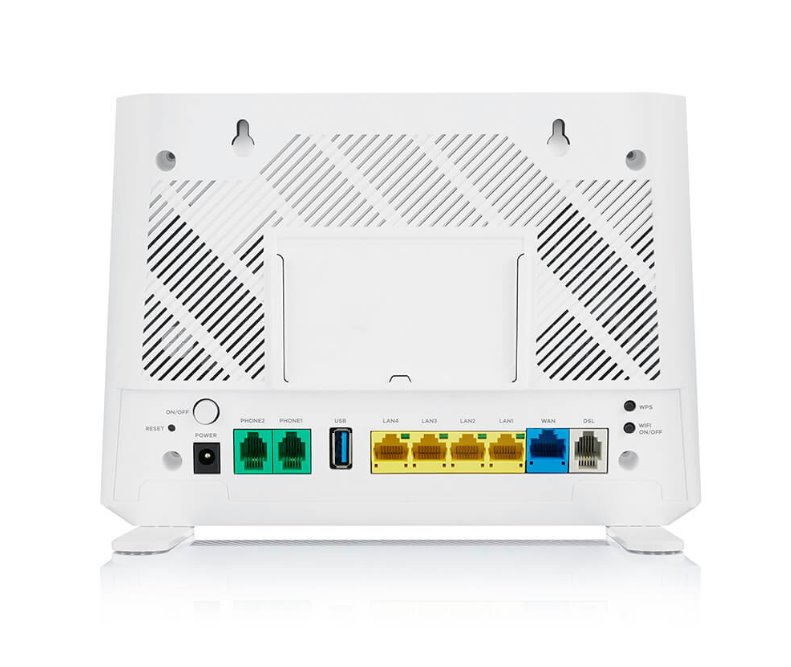

Hardware
WAN interface

DSL RJ-11/RJ45/GbE
Ethernet port (10/100/1000)

5 (1 for Ethernet WAN)
POTS FXS port

2
USB port

1 (USB 2.0)
VDSL

G.993.1 VDSL
G.993.2 VDSL2, Band 997, 998, Over POTS
VDSL profiles: 8a/b/c/d, 12a/b, 17a, and 35b
G.vector
ADSL

G.992.1 (G.dmt)
G.992.2 (G.lite)
ANSI T1.413 compliant
G.992.3 (ADSL2)
G.992.5 (ADSL2+)
Supports G.INP
Router features

IPv4/IPv6
NAT
Port forwarding
WAN connection types: DHCP, PPPoE
DHCP option 60/121/125
DHCP server on LAN
IGMP v1/v2
IGMP proxy
Dynamic DNS
Wireless

Auto channel selection
WiFi Multimedia (WMM)
Wireless scheduling
Wireless output power management
Multiple SSID up to 4
Wi-Fi Protected Setup (WPS)
Intra-BSS traffic block
MAC address filtering
VLAN

802.1q tag/tag based VLAN
VLAN to ETH port mapping
Bridged/routed VLAN

Voice
SIP v2 (RFC 3261)

Yes
SIP account (URL type included)

Yes
SDP (RFC 2327)

Yes
RTP (RFC 1889)

Yes
RTCP (RFC 1890)

Yes
G.168 echo cancellation

Yes
VAD/CNG

Yes
CODEC

G.711 a/u law /G.726/G.722/G.729
DTMF detection

Yes
DTMF: In-band and out-of-band

Yes
QoS (IP bandwidth management)

Yes
ToS

Yes
Phonebook

Yes
FAX, modem detection and pass-through

Yes
T.38 FAX

Yes
IVR

Yes
Call waiting

Yes
Call hold/call retrieve

Yes
Call transferring

Yes
Call forwarding

Yes
Caller ID

Yes
Do not disturb

Yes
Three way conference

Yes
Flexible dial plan

Yes
Dynamic jitter buffer

Yes
On hook, off hook and flash detection

Yes

Standards/profile
VDSL2 Vectoring (up to 35b)/ADSL2+

WLAN
2.4 GHz 2x2 ax + 5 GHz 2x2 ax

Firewall
Stateful packet inspection

Yes
Denial of service

Yes
ICMP blocking

Yes
