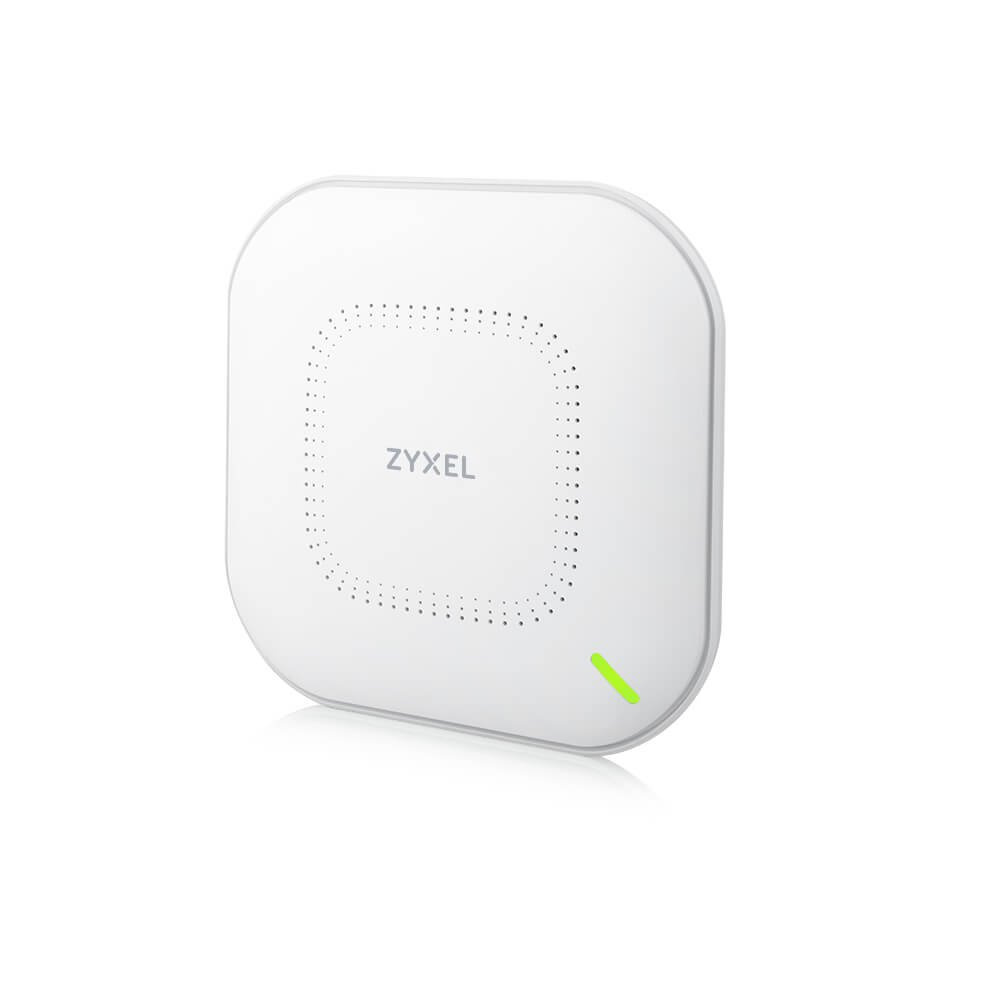

WAX510D, Single Pack 802.11ax 2x2 Dual Optimized Antenna exclude Power Adaptor, EU and UK, Unified AP, ROHS-1 year NCC Pro Pack license bundled

True WiFi 6
The WAX510D is truly the next generation of wireless (WiFi 6) AP, especially for businesses looking to strike the right balance between performance and budget. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO, which can’t be found in the earlier releases of 802.11ax products. The WAX510D boasts an impressive quad-core processor with 2 network accumulators to guarantee that a smooth and consistently fast service is provided to each client at all times.

An access point that fits your need
We understand that mounting an access point to the ceiling isn’t always possible due to the challenging environments like warehouses, historical buildings or stylish hotels were the aesthetics of the building are a priority. The WAX510D is equipped with a dual-optimized antenna that is selectable, allowing the access point to be mounted on the wall or on the ceiling without compromising on performance and coverage.

The smartest choice
The WAX510D is not only efficient at delivering impressive high speeds with smooth and consistent delivery to wireless clients, but also it’s efficient on power. The WAX510D can deliver its impressive performance while keeping the consumption of PoE within the PoE+ standard, so that you can enjoy the latest WiFi 6 technology offering without the need to invest in upgrading your traditional switching architecture.

Manage it your way!
As it comes with support for NebulaFlex Pro, Zyxel’s scalable, cloud-based management system, the WAX510D can be managed via NCC (Nebula control Center), on-premises controller or simply operate alone (controller less). You can choose the way that is best suited to your needs.

Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 575Mbps
5GHz: 1200Mbps
Frequency band 2.4 GHz (IEEE 802.11 b/g/n)
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- and 80-MHz
Conducted typical transmit output power US (2.4GHz/5GHz): 23/26dBm
EU (2.4GHz/5GHz): 20/25dBm
RF Design
Antenna type Dual optimized Antenna
Antenna gain 2.4GHz: Peak Gain 5dBi
5GHz: Peak Gain 6dBi
Minimum Receive sensitivity Min. Rx sensitivity up to -101 dBm
WLAN feature
Band Steering Yes
WDS Future Support
Mesh AP (By License) Future Support
Mesh AP for multiple SSID with VLAN Future Support
Smart mesh Future Support
Fast roaming Pre-authentication, PMK caching and 802.11r
DCS (Auto Channel) Yes
Load balancing Yes
Security
Wireless Security
WPA
WPA-PSK
WPA-Enterprise (WPA/WPA2/WPA3)
Access management
L2-isolation
MAC filtering
Rogue AP detection
EAP
IEEE 802.1X
RADIUS authentication
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating mode
Nebula Cloud managed
Controller-managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations
IP configuration
IP renew
Device factory reset
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
One-click quick association with Zyxel AP Configurator (ZAC)
Zyxel AP Configurator
Batch AP configuration
Batch AP firmware upgrade
Batch AP profile backup
Zyxel Wireless Optimizer
WiFi AP planning
WiFi coverage detection
Wireless health management
Web UI/ CLI Yes
SNMP Yes
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)
180 x 180 x 39 / 7.09 x 7.09 x 1.54
Weight (g/lb.)
453g / 1
Packing Dimensions (WxDxH)(mm/in.)
229 x 216 x 64 / 9.02 x 8.5 x 2.52
Weight (g/lb.)
770g / 1.7
Included accessories
Mount plate
Mounting screws
MTBF (hr) 635,837
Physical Interfaces
Ethernet port
1 x 10/100/1000M LAN
Power
PoE (802.3)at: power draw 17 W
DC input : 12 VDC 1.5A
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)
Storage Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
EN60601-1-2
BSMI CNS13438
Safety
Safety EN 60950-1
IEC 60950-1
BSMI CNS14336-1
